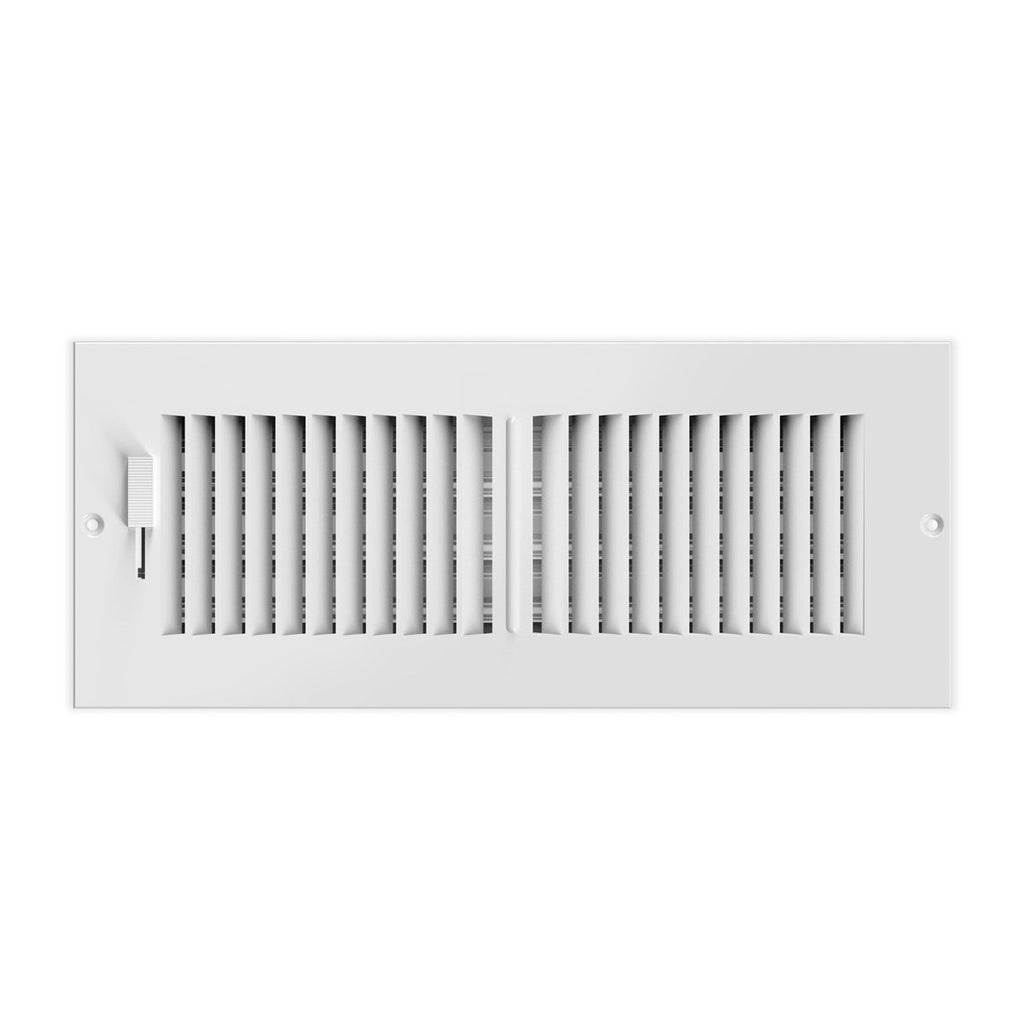

The AC Infinity Register Ventilation Grille, 4 × 12 inch is a rectangular louvred register for a floor, wall or ceiling opening. Steel with a rustproof matte powder-coat finish, and a face plate that covers the cut edge.

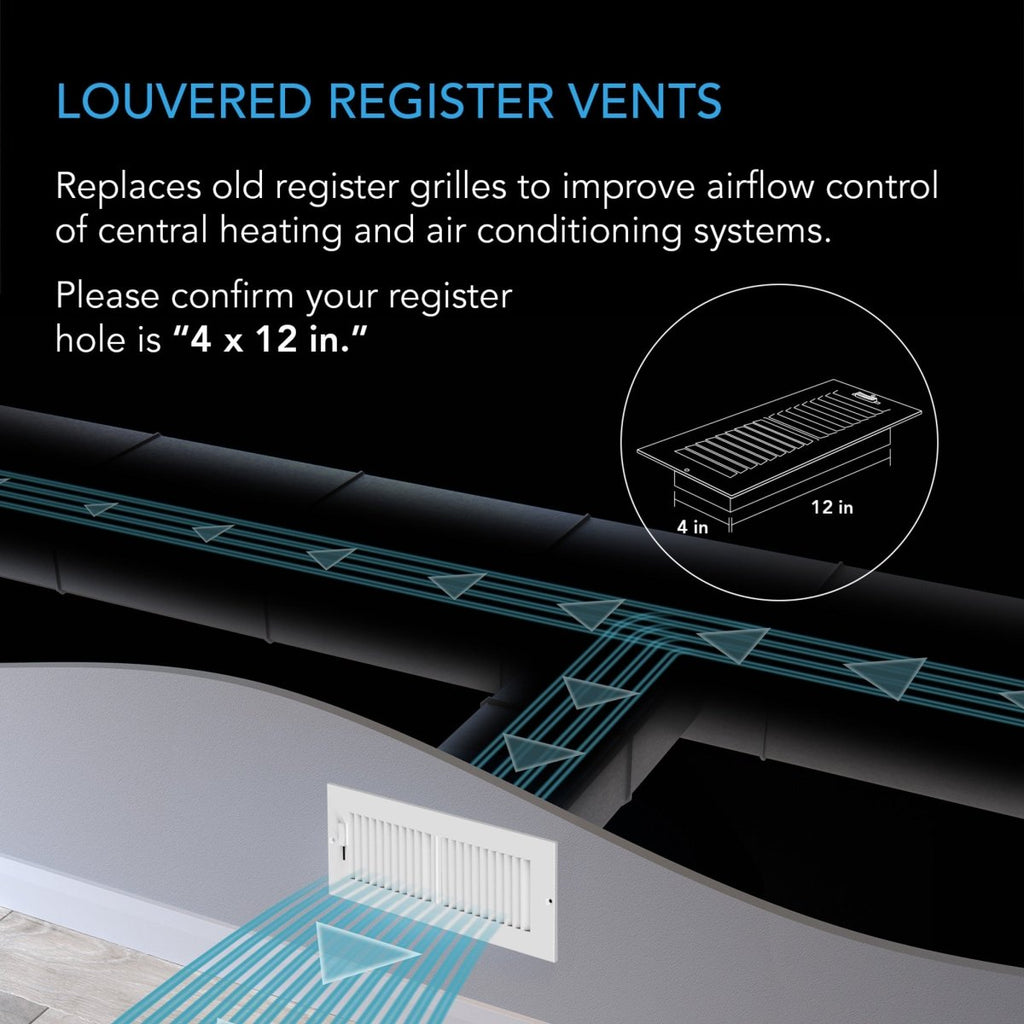

Where a round grille finishes a duct, a register finishes an opening — the rectangular cut between joists or studs that a ducted system delivers through. It is the part people forget until the duct is run and the hole is already cut.
What people use it for
Home ventilation
- Floor outlets between joists on a ducted supply or return

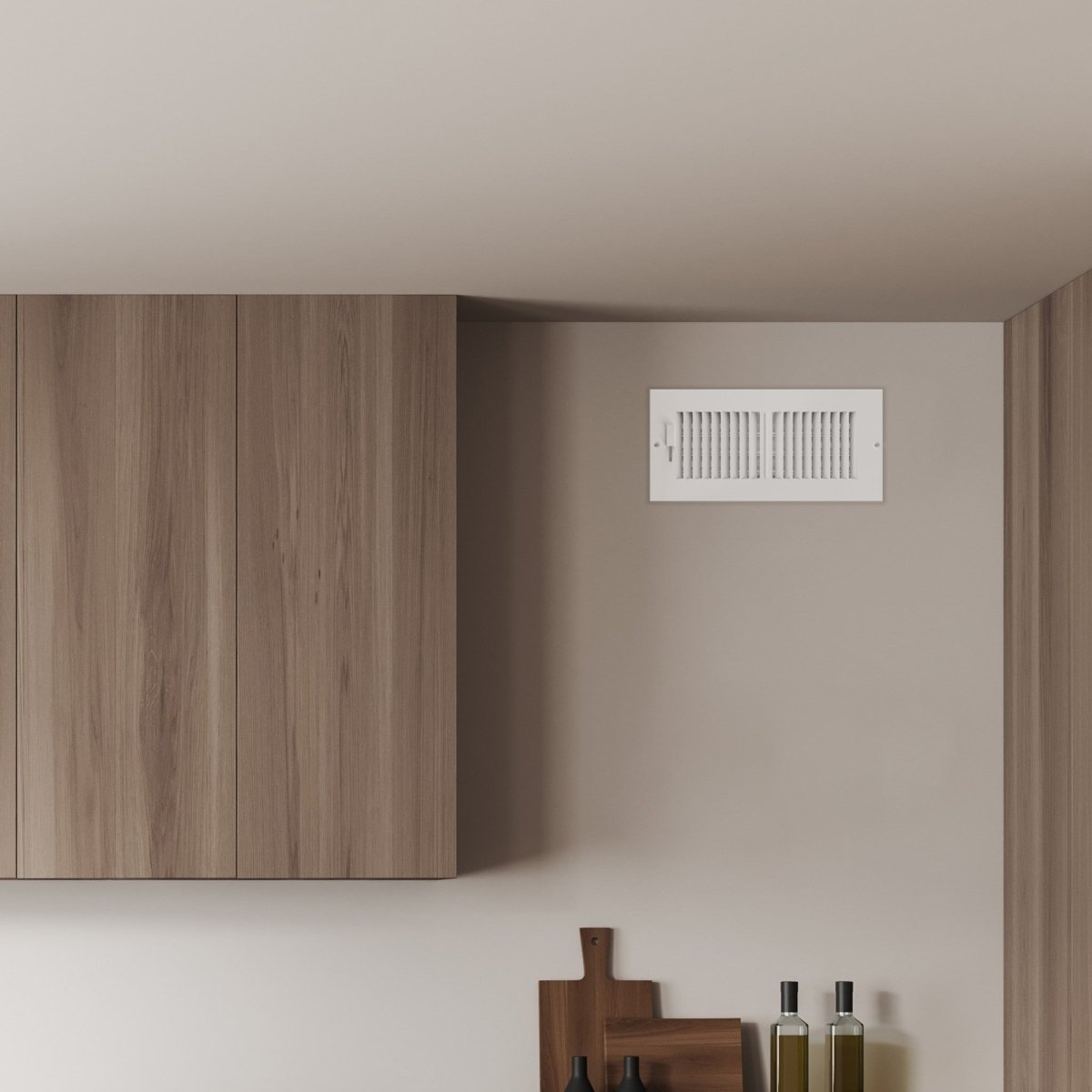

- Wall registers between studs, where stud spacing sets the width
- Ceiling outlets finishing a ducted run
- Transfer air between a subfloor void and the rooms above
Hydroponic ventilation
- Passive intake openings into a grow room or lung room
- Transfer air between a grow space and an adjoining room
- Finishing a rectangular cut in a stud wall or platform
- Any opening where a round grille would waste the aperture

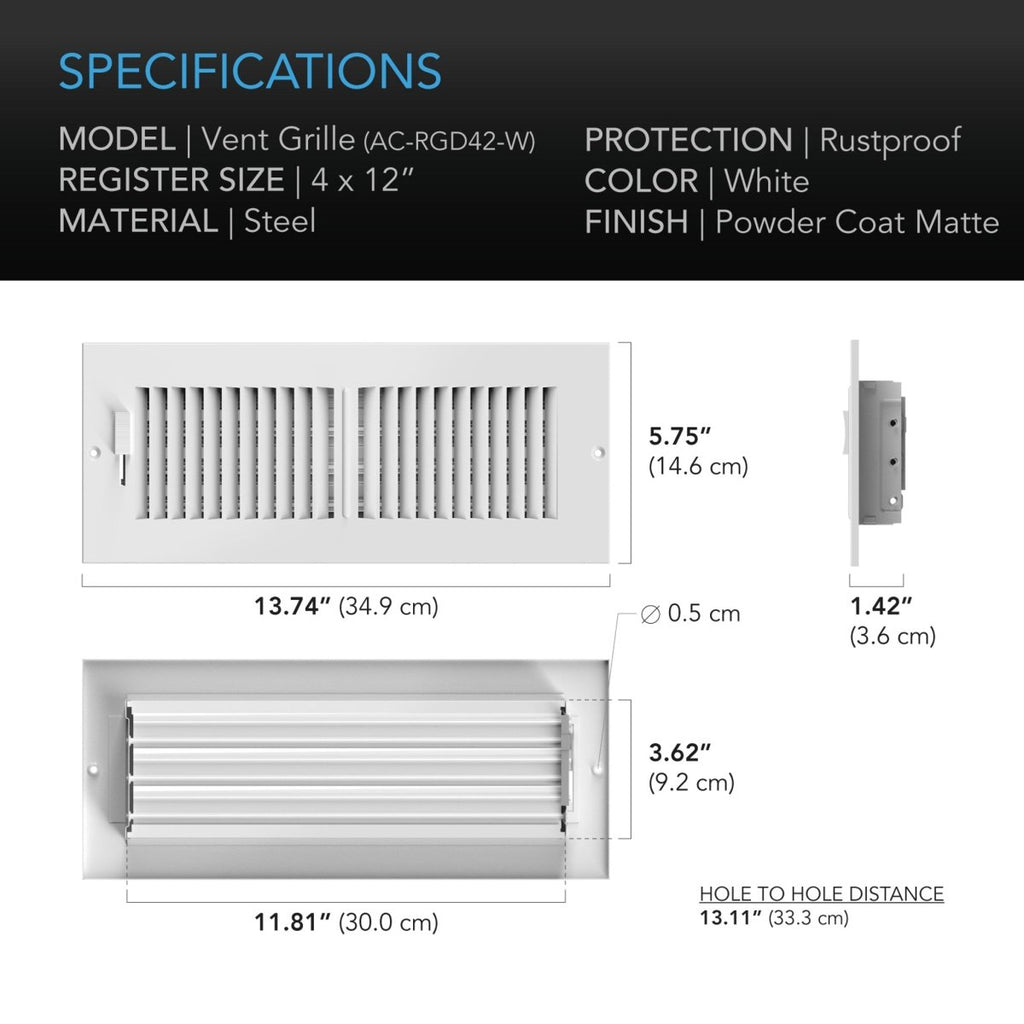

Full specifications
| Manufacturer | AC Infinity Inc. |
| Product / model | Register Ventilation Grille 4 × 12 inch / AC-RGD42-W |
| UPC | 819137024304 |
| Nominal size | 4 × 12 inch |
| Overall dimensions | 349 × 146 mm |
| Screw hole size | Ø 5 mm |
| Material | Steel |
| Finish | White rustproof matte powder coat |
| Louvres | Fixed |
| Fixings | Not supplied |
FAQ
What size opening do I cut?
Cut to the nominal size — 4 × 12 inch — and the face plate at 349 × 146 mm overlaps the cut edge for a tidy finish. Offer the plate up before you cut, not after.
Can I use it in a floor people walk on?
It is steel and fixed through the face, but these are ventilation registers rather than rated floor gratings. In a trafficked floor, site it where feet do not land or use a purpose-made grate rated for foot traffic.
Will it rust in a damp subfloor or a humid grow room?
The rustproof matte powder coat is why it handles damp better than a bare steel register. Anything steel in a permanently wet environment will suffer eventually — but a permanently wet subfloor is a drainage problem to fix first, and a permanently soaking grow room is a ventilation problem. The subfloor guide covers the former.
What sizes do you stock?
4 × 12 inch and 6 × 12 inch. This is the 4 × 12 inch; the other is the 6 × 12 inch.
Is this genuine AC Infinity stock with an Australian warranty?
Yes. Quick Bloom Lights is the official Australian importer and distributor for AC Infinity. Stock is held in Sydney, orders ship domestically, and the two-year warranty is handled here rather than through an overseas seller.
