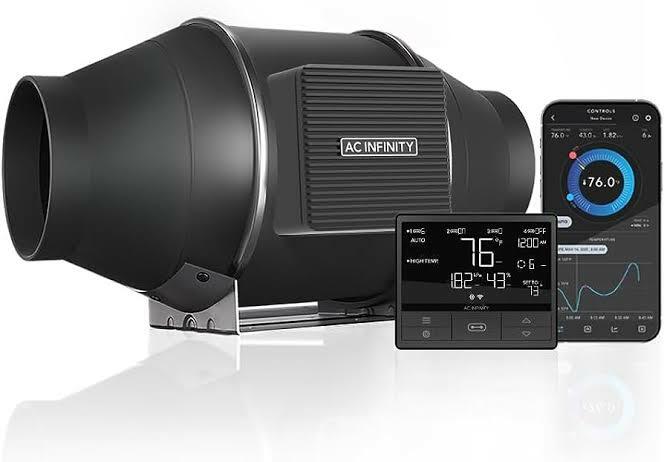

Cloudline PRO T4, AC Infinity, Quiet Inline Duct Fan with Controller 69 Pro, 100 MM - Quick Bloom Lights

Cloudline PRO T4, AC Infinity, Quiet Inline Duct Fan with Controller 69 Pro, 100 MM

$275.00 AUD
Free Shipping Australia-Wide *
In stock

Pickup available at Unit 27, 32-38 Belmore Road, Punchbowl, NSW 2196

Usually ready in 1 hour

Cloudline PRO T4, AC Infinity, Quiet Inline Duct Fan with Controller 69 Pro, 100 MM

Default Title

Unit 27, 32-38 Belmore Road, Punchbowl, NSW 2196

Pickup available, usually ready in 1 hour

27/32-38 Belmore Road North
Punchbowl NSW 2196
Australia

+61280075126
AC Infinity -   Designed to ventilate hydroponic grow rooms, transfer heating/cooling, cool AV closets, and exhaust odours. Dynamic temperature and humidity programming, with timers, grow cycles, scheduling, minimum speed. Remotely connect to our WiFi app to access advance programs, view climate data, and set automation. Mixed flow design combined with a PWM-controlled EC-motor for a truly quiet and energy efficient performance. Duct Size: 4” | Dimensions: 6.
Full Product Description / Specifications



  • Designed to ventilate hydroponic grow rooms, transfer heating/cooling, cool AV closets, and exhaust odours.
  • Dynamic temperature and humidity programming, with timers, grow cycles, scheduling, minimum speed.
  • Remotely connect to our WiFi app to access advance programs, view climate data, and set automation.
  • Mixed flow design combined with a PWM-controlled EC-motor for a truly quiet and energy efficient performance.
  • Duct Size: 4” | Dimensions: 6.9 x 11.9 x 7.4 in. | Airflow: 205 CFM | Noise: 28 dBA | Bearings: Dual Ball

Product Description

A smart inline duct fan designed to quietly ventilate hydroponic grow rooms, boost heating/cooling to rooms, circulate fresh air, exhaust projects, and cool AV closets. Featuring an inline mixed-flow design, the duct fan can maintain airflow even in high static pressure applications. It is built with a PWM-controlled EC motor for quiet and energy-efficient performance. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. Includes a smart controller with dynamic climate and time-based programming and can connect to multiple UIS devices. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

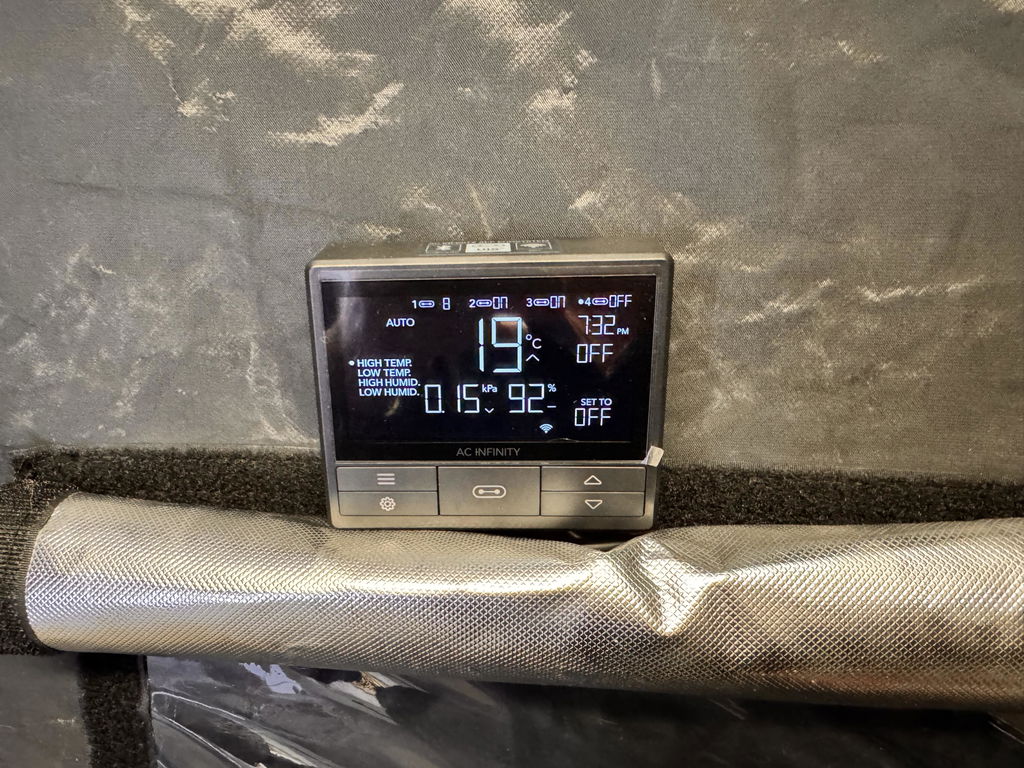

Smart Controller

CONTROLLER 69 PRO features smart programming that not only has basic temperature, humidity, and VPD triggers but also allows you to set dynamic fan speeds that would respond based on their changes. Go even further by setting a minimum speed that the fan will run at constantly and would only increase when triggered. Timer, cycle, and schedule modes add custom on-demand activation for various uses. Securely connect to the AC Infinity app via WiFi to utilise automation capabilities from anywhere throughout the day. Access your fan remotely, unlock advance programs, set notifications, view historical climate charts, and export CSV data. This controller can connect to up to four UIS devices which includes products like the CLOUDLINE, CLOUDRAY, and IONFRAME Series. It can also connect to your favourite grow light and outlet device from outside the UIS platform using select adapters.

Quiet and Energy Efficient Design

Unlike common duct fans that use an AC motor which is loud and unmanageable, this duct fan features an EC motor that is controlled using PWM (Pulse Width Modulation). This technology enables motors to be able to run smoothly at extremely low RPM speeds without generating additional heat or noise. In addition, the duct fan uses a mixed flow design using a stator blade and dual hydrodynamic wind circles. This gives it a high static pressure rating, enabling it to deliver airflow even in applications where air movement is restricted. The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction. The unit is IP44 rated to be highly resistant to dust and liquids and performs well even in harsh environments.

Applications

This quiet duct fan system is popular in a variety of applications including cooling AV equipment rooms, closets, racks, and cabinets. Due to its low noise and advanced control features, it’s also used in various air circulation and ventilation projects including hydroponic grow rooms and tents, exhausting bathrooms and attics, and other installations.



Technical Specifications For Cloudline Pro T4

 Product Identification Cloudline Pro T4
   Manufacturer    AC Infinity Inc.
   Product Name    CLOUDLINE T4
   Product Model    AI-CLT4
   UPC Code    854759004785
   Product and Mounting Dimensions - Fan Unit
   Duct Size    4"
   Total Dimensions    7.40 x 11.93 x 6.93 in. (18.8 x 30.3 x 17.6 cm)
   Mounting Hole-To-Hole Distance    3.15 x 2.36 in. (8.0 x 6.0 cm)
   Screw Hole Size    Ø 0.197 in. (Ø 0.5 cm)
   Cord Length to Controller    120 in. (10 feet)
   Product and Mounting Dimensions - Controller
   Total Dimensions    5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
   Hole to Hole Distance    4.71 x 2.64 in. (12.0 x 6.7 cm)
   Screw Hole Size    Ø 0.119 in (Ø 0.3 cm)
   Display Size    3.5 x 1.4 in. (9 x 3.5 cm)
   Cord Length to Plug    96 in. (8 feet)
   Sensor Probe Length    144 in. (12 feet)
   Product Performance and Technical Specs
   Total Airflow    205 CFM
   Total Noise    28 dBA
   Max Speed    2800 RPM
   Static Pressure    223 Pa
   Voltage    100-240V AC
   Frequency    50/60 Hz
   Max Power Draw    28 W
   Average Power Usage    21 W
   Current    0.4 A
   Power Connector Type    Australian Power Plug
   Operating Humidity    35 to 85% RH
   Operating Temperature    32 to 140°F
   Ingress Protection    IP 44
   Fan Bearings    Dual Ball
   Mounting Positions    Horizontal or Vertical
   L10 Life Expectancy    67,000 Hours
   CE Certification (Whole Product)
   CE Certification (Whole Product) PDF
   ETL Cert. (Whole Product)
   CE Certification (Whole Product) PDF
   RoHS Cert. (Whole Product)
   Installation Manual PDF
   SAA Cert. (Whole Product)
   Installation Manual PDF
   IC Cert. (Whole Product)
   Installation Manual PDF
   Product Manual
   Product Manual
   Product Manual PDF
