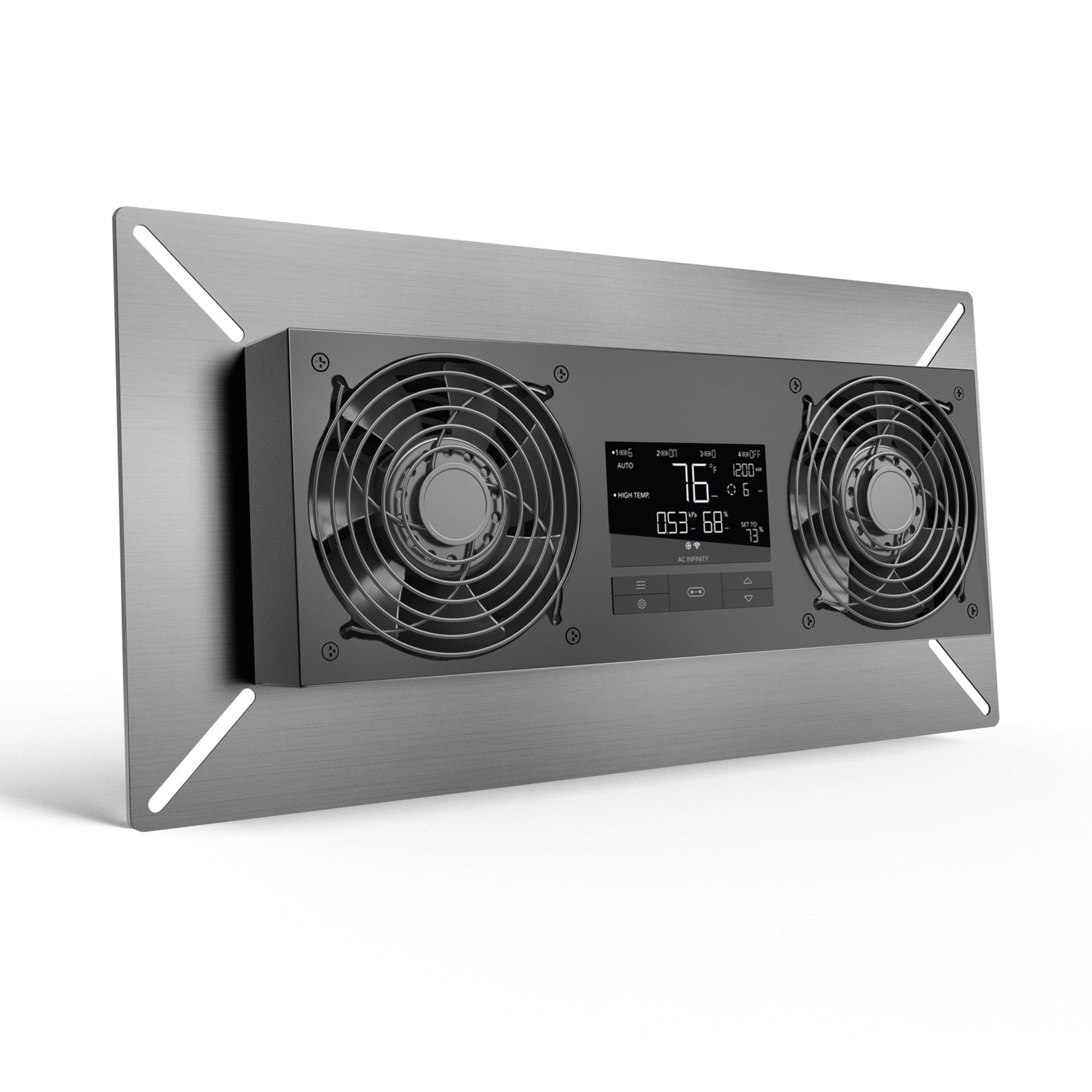

AIR TITAN T8, Crawl Space and Basement Ventilator Fan, WiFi-Integrated Controls, IP-55 Rated, Exhaust

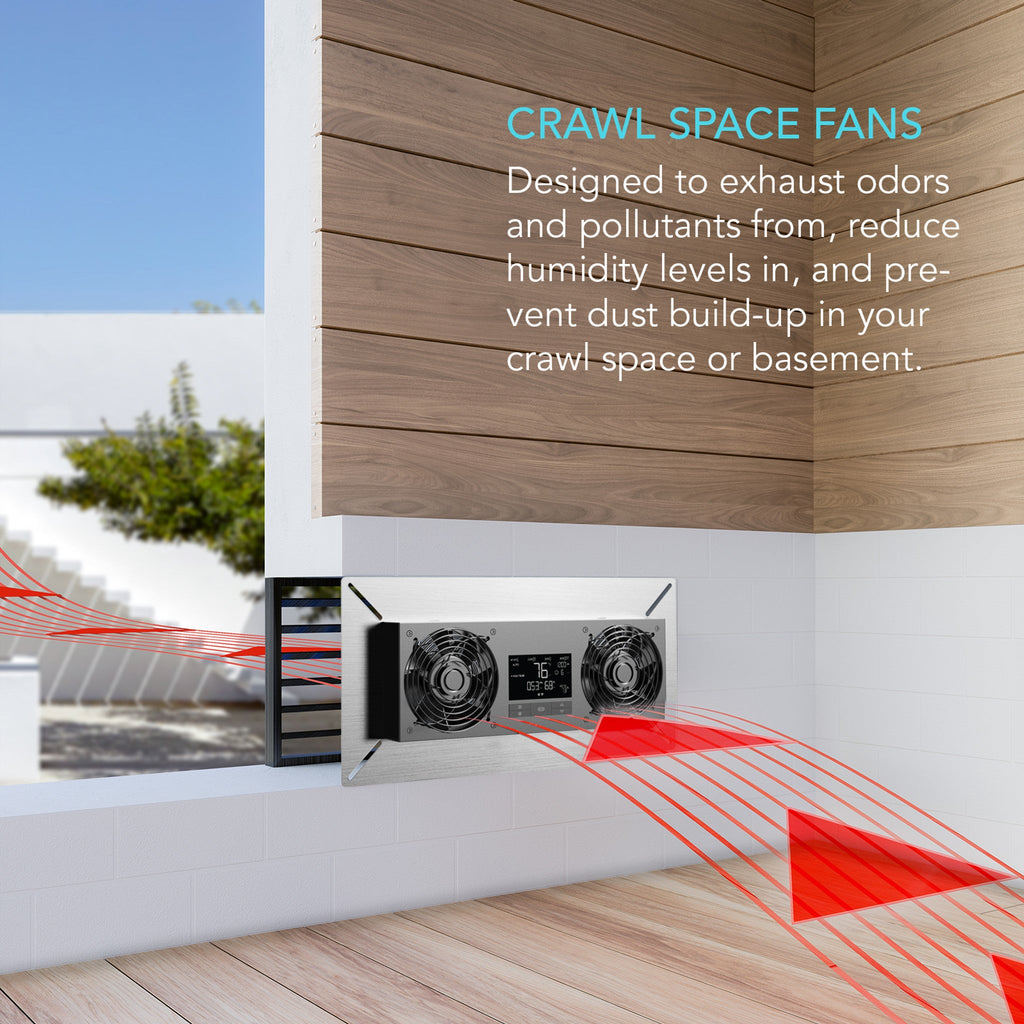

• A fan system designed to provide ventilation and moisture control for crawl spaces and basements.
• Creates exhaust airflow to reduce humidity and expel foul odours and stale air from your home.
• Dynamic temperature, humidity & VPD programming, with timers, cycles, scheduling, and minimum speed.
• Remotely connect to our WiFi app to access advance programs, view climate data, and set automation.
• Design: Exhaust | Backplate Dimensions: 18 x 9 x 1.6 in. | Airflow: 240 CFM | Noise: 32 Dba | IP55 Rated
• Comes with Australian Power Plug

Product Description

A high-airflow ventilator fan designed to control the temperature and humidity levels of your crawlspace, basement, attic, and garage. This system reduces humidity levels while expelling odors and stale air from your home. Features a WiFi-enabled LCD with smart thermostat and dehumidistat control, as well as triggers, fan speed control, status alerts, and more. Included 12 ft. corded sensor probe plugs into the controller to provide temperature and humidity readings. The heavy-duty build includes a stainless-steel mounting frame and IP-55-rated fans. Features dual 120mm PWM-controlled DC fans that are highly efficient in maximizing airflow at lower noise and power levels.

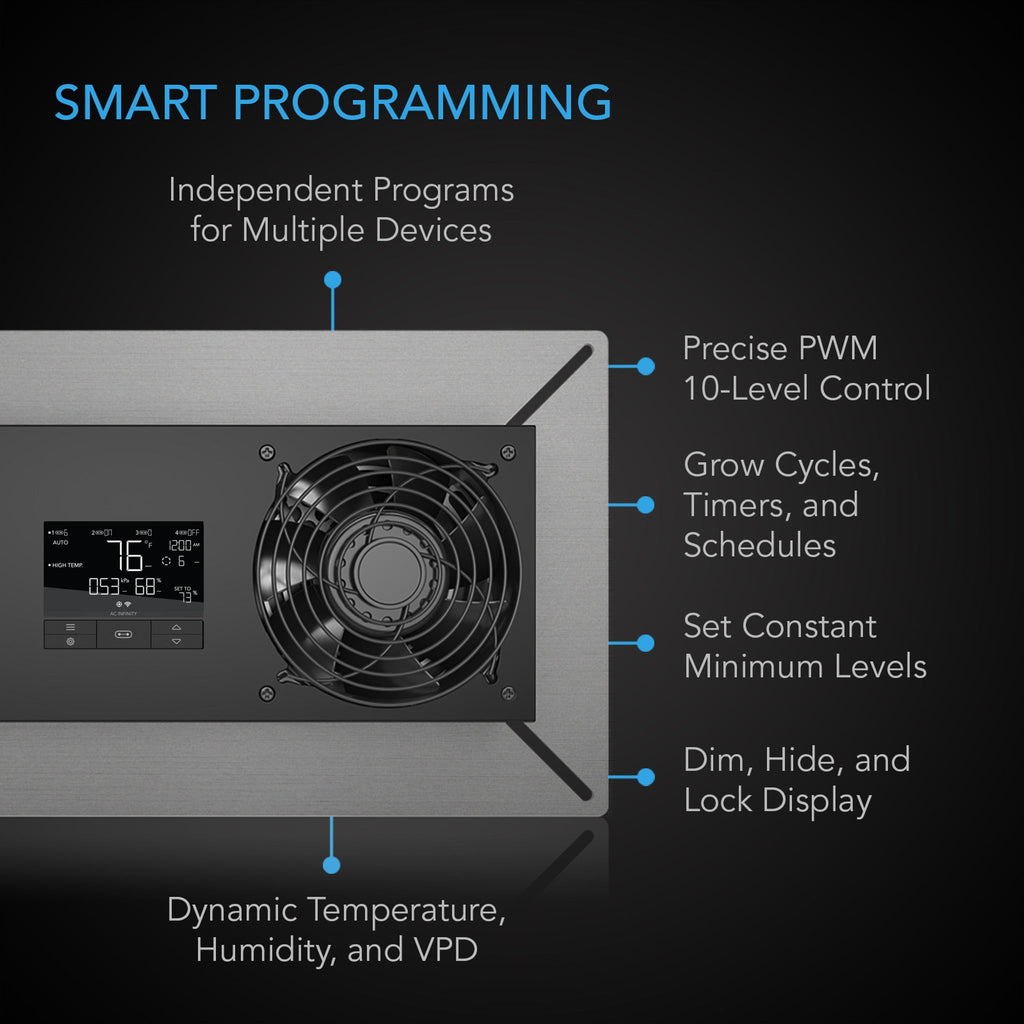

Smart Programming

The onboard controller features smart programming to keep temperature, humidity, and VPD in check to produce the optimal environment. Set dynamic programs that go beyond on/off triggering and adjust fan speed in response to changing indoor climate. Minimum baseline levels keep the crawlspace fan running at low speeds for consistent airflow, while timer, cycle, and schedule modes add custom on-demand activation. Securely connect to the AC Infinity app via WiFi to utilize automation capabilities from anywhere throughout the day. Remotely access your devices, unlock advance programs, set alarms and notifications, view historical charts, and export CSV data.

Heavy-Duty Performance

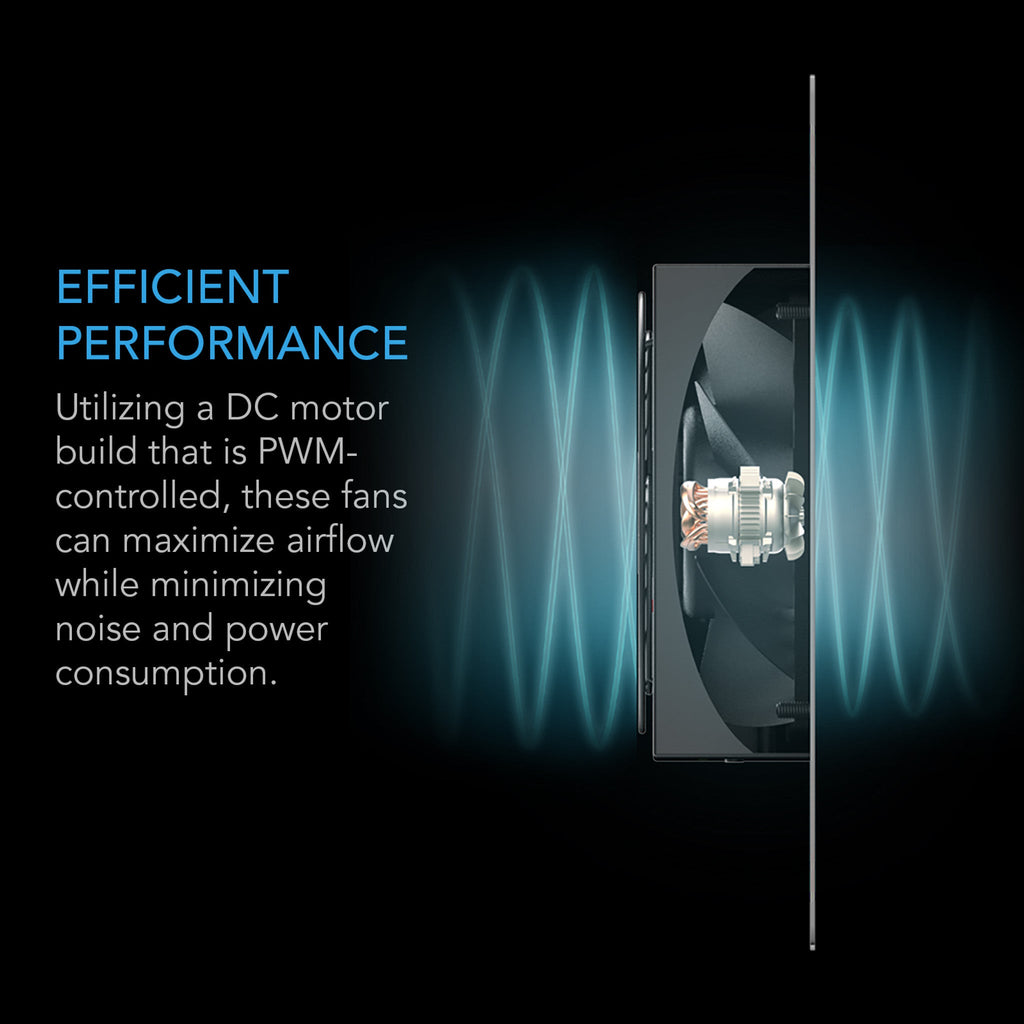

This crawlspace fan system is enclosed in heavy-duty stainless steel with spiral fan guards. Utilizing DC motors that are controlled using PWM (Pulse Width Modulation), the fans can maximize airflow while reducing noise and power consumption. In addition, the dual 120mm fans are IP-55 rated to be highly resistant to liquids and dust particles. The motor houses dual-ball bearings that are rated at 67,000 hours and allow this fan system to be mounted horizontally or vertically.

Product Identification  Airtitan T8 Exhaust Fan
Manufacturer	AC Infinity Inc.
Product Name	AIRTITAN T8
Product Model	AC-ATT8
UPC Code	819137020481

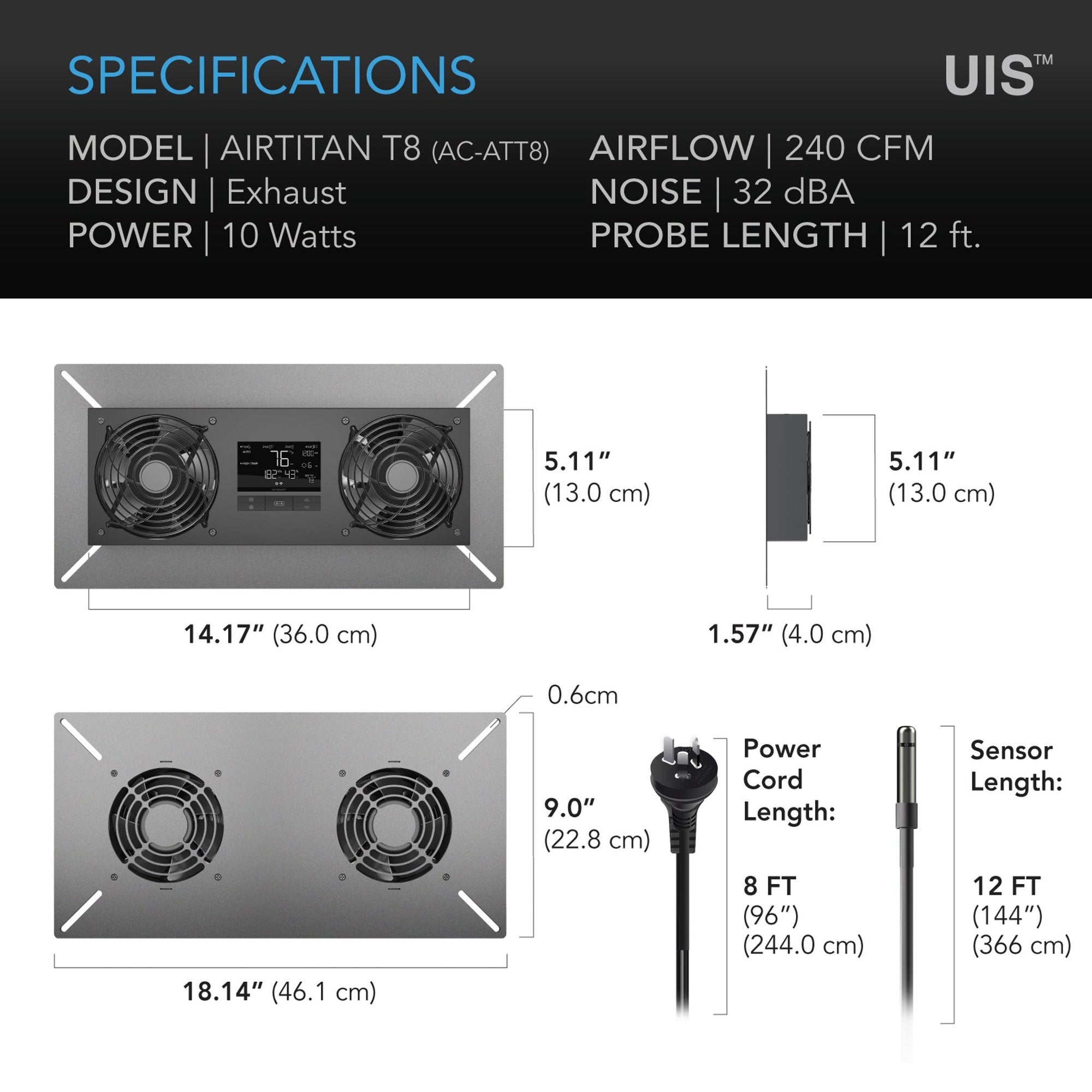

Product and Mounting Dimensions
Total Dimensions	18.14 x 9.0 x 1.57 in. (46.1 x 22.8 x 4.0 cm)
Frontside Enclosure Dim.	14.17 x 5.11 x 1.53 in. (36.0 x 13.0 x 3.8 cm)
Power Cord Length	96 in. (8 feet)
Sensor Probe Length	144 in. (12 feet)
Product Performance and Technical Specs
Design	Exhaust
Engine	Dual 120mm
Total Airflow	240 CFM
Total Noise	32 dBA
Static Pressure	5.46 mm-H2O
Operating Voltage	12V DC
Power	10 W
Current	0.8 A
Wall Adapter Input	100 to 240V AC
Operating Humidity	35 to 85% RH
Operating Temperature	32 to 140°F
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
L10 Life Expectancy	67,000 Hours
CE Certification (Whole Product)	PDF
RoHS Cert. (Whole Product)	PDF
Product Manual
Product Manual	PDF
