Sold Out

HLG 260W XL QB V2 LED KIT GROW LIGHT

$699.00 $565.00
SKU: HLG260XLV2/3000K

This product is sold out

READY TO ASSEMBLE 260W LED V2 BOARD KIT

  • contact us for 3 x QB288 board solution

 Best DIY Growlight in Australia - Best yield and result, get the grow light favored by tens of thousands both in Australia and USA

260 Watt Lamp Kit. High Efficiency QB288 V2 powered with Samsung top bin Diodes. Suited for main light and supplement lighting. 3 ft long heatsink for a wider spread

Length:891mm, Width:205mm

Dimmable 135-285 Watts
Veg Footprint 4x4 sqft
Recommended Flower Footprint 2x4 sqft



QB288 V2- 288pcs Samsung 301B

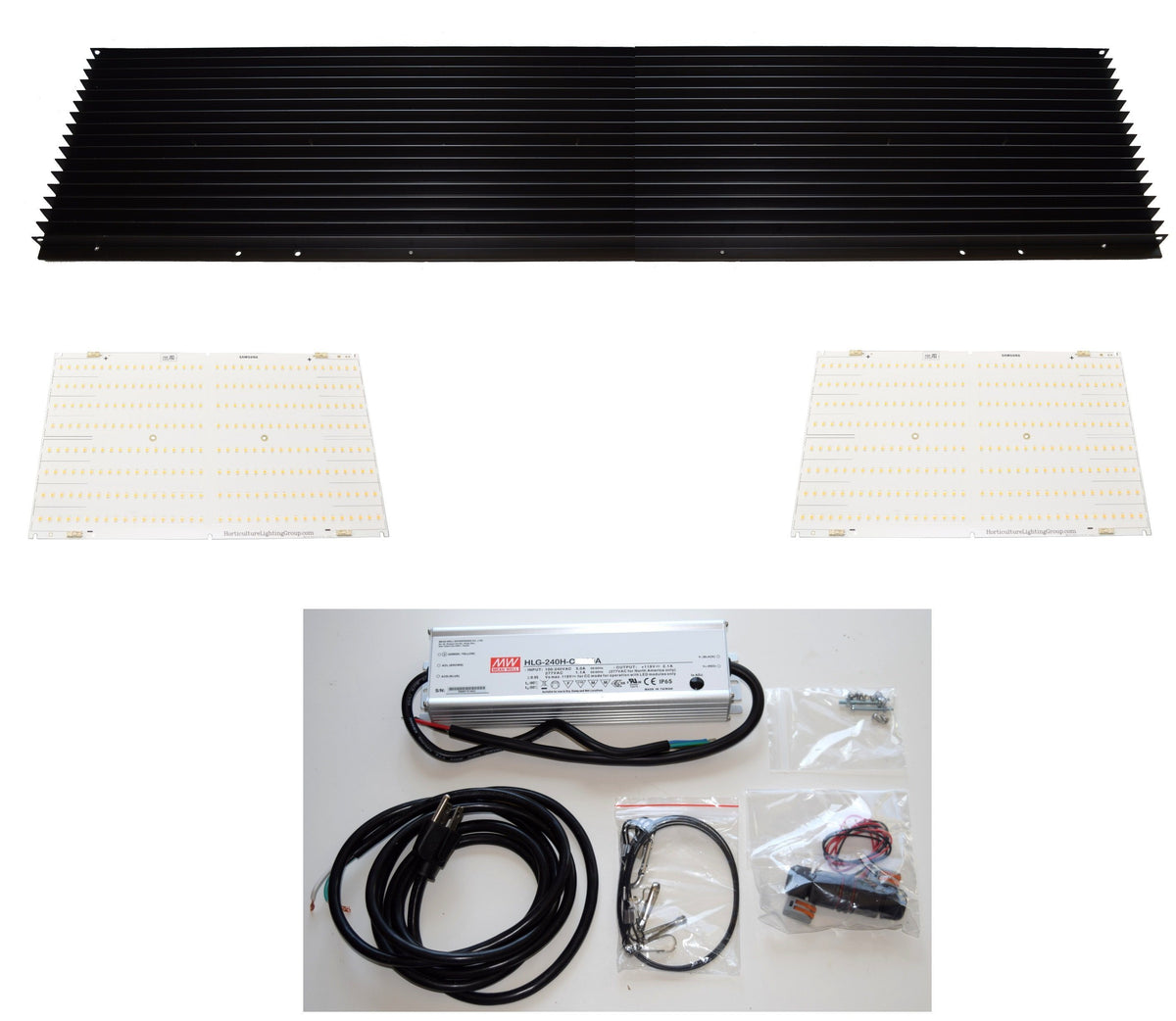

INCLUDES

  • 2x QB288 V2 Boards Made by Samsung with 301B LED
  • 1x Slate 2 Triple Predrilled 891mm Heatsink
  • Meanwell ELG-240H LED LED Driver. 93.5% Driver Efficiency. Boards should be wired in series with the driver for maximum output
  • 240 volt Australian Plug Cable provided.
  • 2ft solid core Wire, 2x Wago Connectors for DC wiring
  • Hanger Clips



    Lamp Efficacy with QB 288 V2  2.47 µmol/J , 170Lm/W
    Board Level Efficacy with QB 288 V2 2.63 µmol/J , 181Lm/W





    No Thermal Interface Material is required between the LED board and the heatsink.

    Remove black plug on driver and use flat head screw driver for dimming

    LED Driver color wires



    Molex Lite Trap





    Note, we are not responsible for any assembly and ask that you use a licensed electrician to assemble and install any DIY Light.

    Light comes with Australian Plug, NOT USA plug as displayed in Picture.

    Ships from our Warehouse in Sydney, Australia.

    Note, the Australian HLG 260 Ships with a ELG Meanwell - It will be Same output and quality.
