Replaced by the HLG 135 V2 See it HERE
READY TO ASSEMBLE 135W DIY LED BOARD KIT By Horticulture Lighting Group.
135 Watt Lamp Kit. High Efficiency QB288 Samsung 561C top bin Diodes. Suited for main light and supplement lighting.

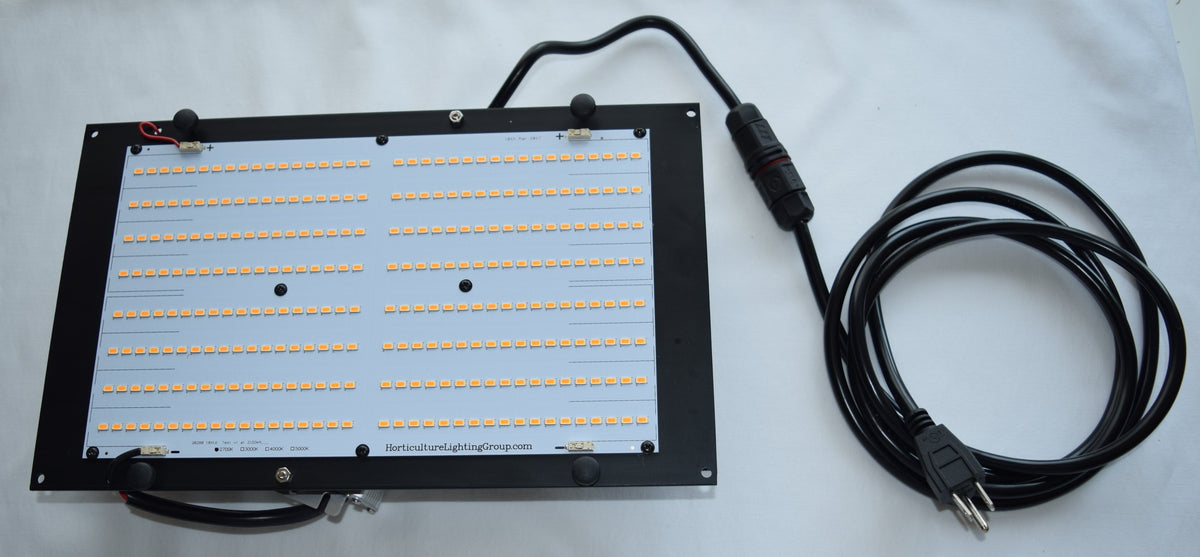

Very easy to assemble, we ship with Australian Power cord attached.
|Veg Footprint||3x3 sqft|
|Recommended Flower Footprint||2x2 sqft|
|Max Flower Footprint||2x3 sqft|

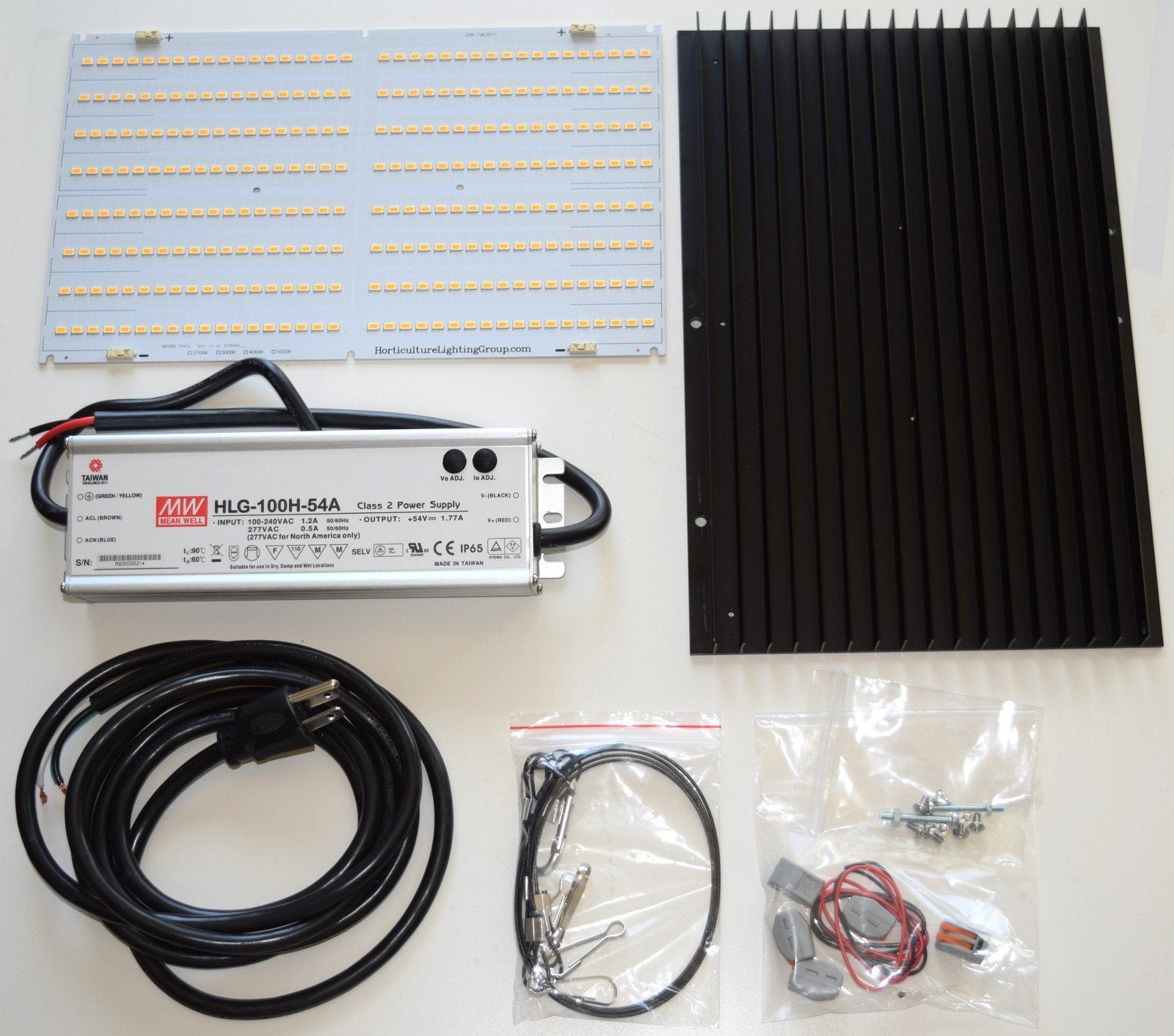

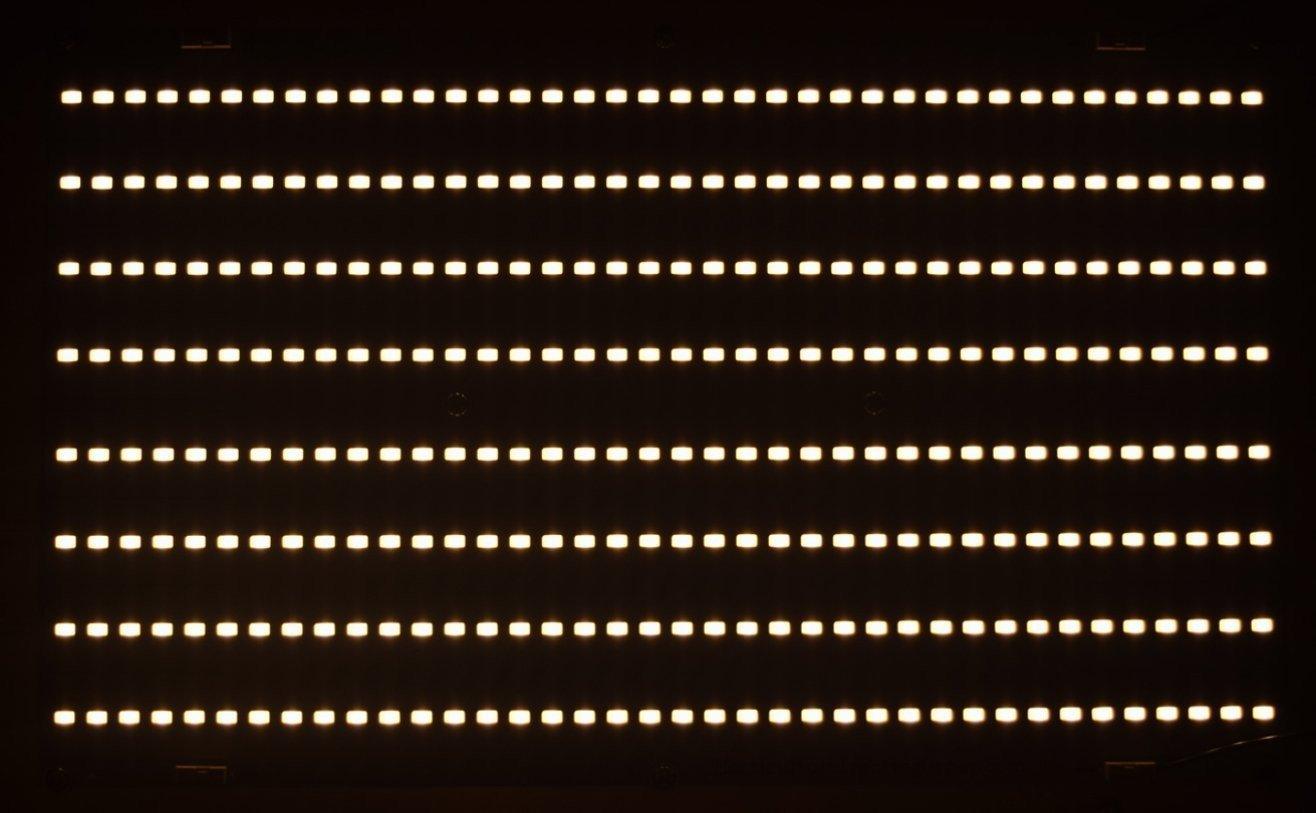

- 1x QB288 Board with 288pcs Samsung 561C top bin Diodes
- 1x Slate 2 Predrilled 340mm Heatsink

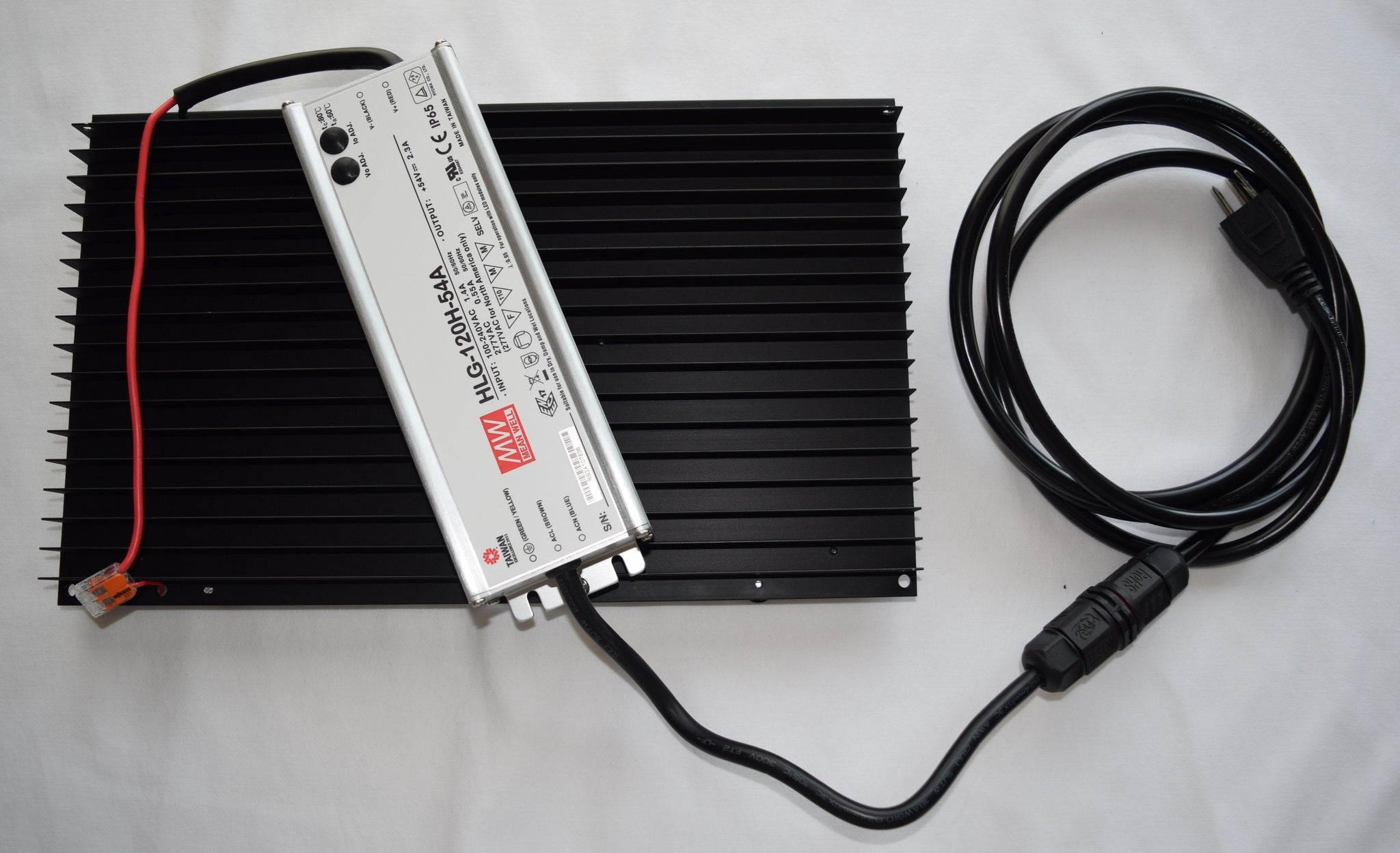

- Meanwell HLG-120H-54A LED Driver. 93.5% Driver Efficiency
- 6FT Nema 5-15P 16/3 SJTW NA Power Cord or equivalent for standard 240VAC with cable connector - Ships w. Australian Plug ready to go.
- 2ft solid core Wire, 2x Wago Connectors for DC wiring
- Hanger Clips
Lamp Efficacy with S6 Flux bin 2.44 µmol/J , 162Lm/W
Board Level Efficacy with S6 Flux bin 2.61 µmol/J , 173Lm/W
SHIPS FROM SYDNEY - NO SOLDERING NEEDED
NOTE USE A FLATHEAD WHEN ADJUSTING DIMMER ON DRIVER, TO AVOID WEARING OUT THREAD. Thread on Screw NOT covered by warranty.
12 Month Warranty on this light is offered parts, not assembly.
