HLG 260 V2 - Blue Spec VEG LIGHT / Clone / Mothers QB 288 Quantum Boards

Join our Newsletter, to be the first to know when back in stock:

Spectrum: Blue spec / perfect Seed and Veg Strong

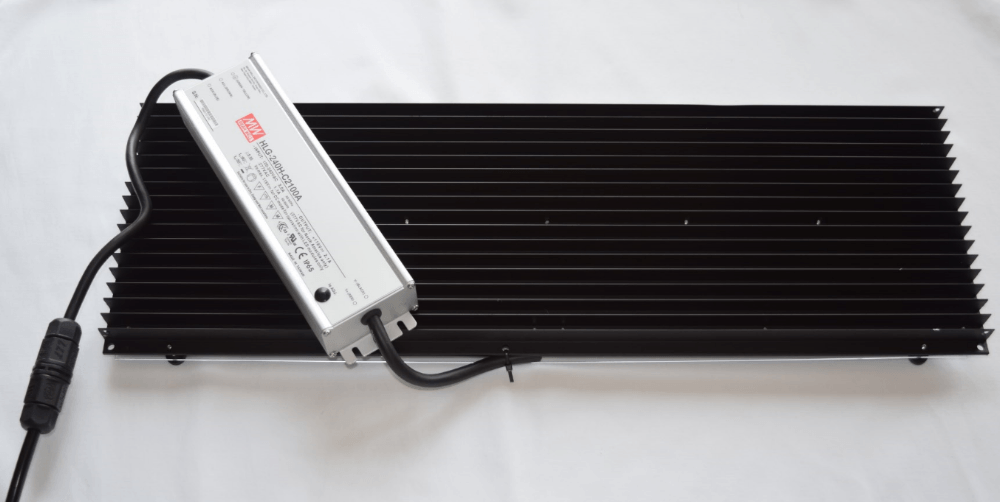

READY TO ASSEMBLE 260W LED V2 BOARD KIT

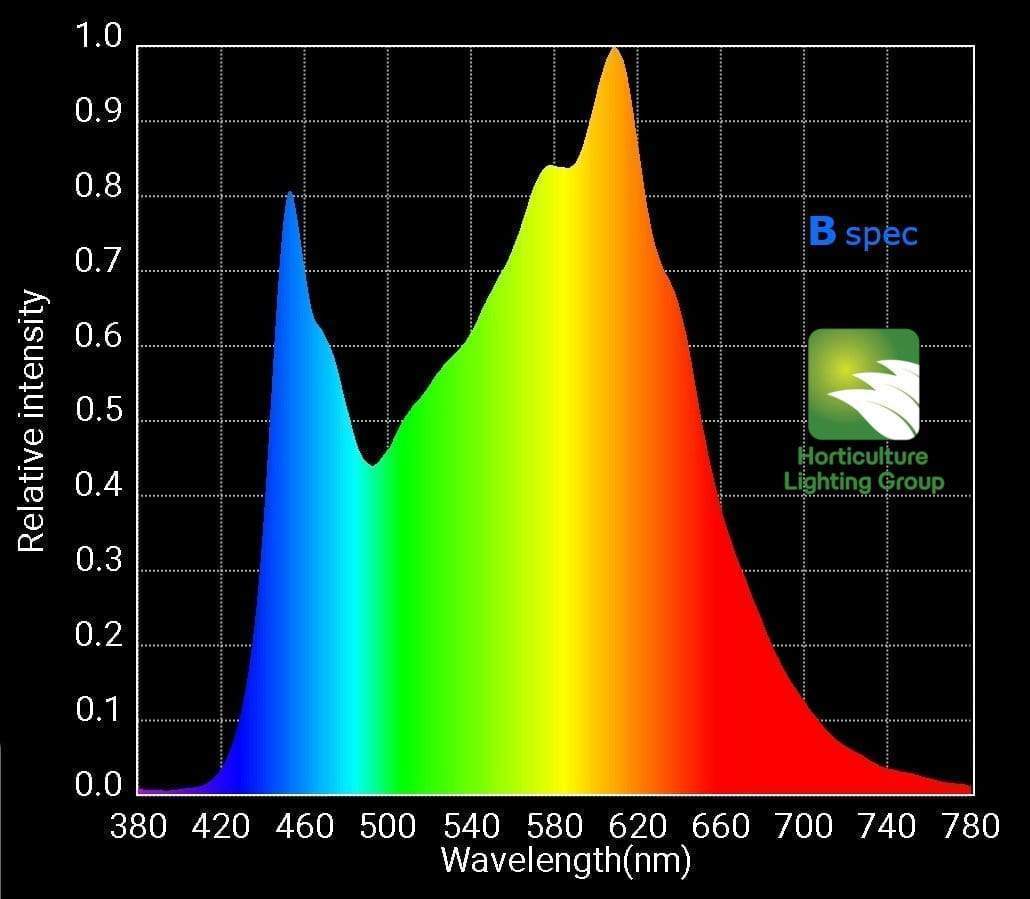

3500K Spectrum with Blue Spec added - Ideal for Veg / Clones / Mothers.

 Best DIY Growlight in Australia - Best yield and result, get the grow light favored by tens of thousands both in Australia and USA

260 Watt Lamp Kit. High Efficiency QB288 V2 powered with Samsung top bin LM301H Diodes. Suited for main grow light.

Dimmable 135-285 Watts
Length 600mm
Width 205mm
Veg Footprint 4x4 sqft
Recommended Flower Footprint (these are veg only) 3x3 sqft or 2x4 sqft



QB288 V2- 288 pieces of Samsung LM301H 3500K diodes with added Blue Spectrum

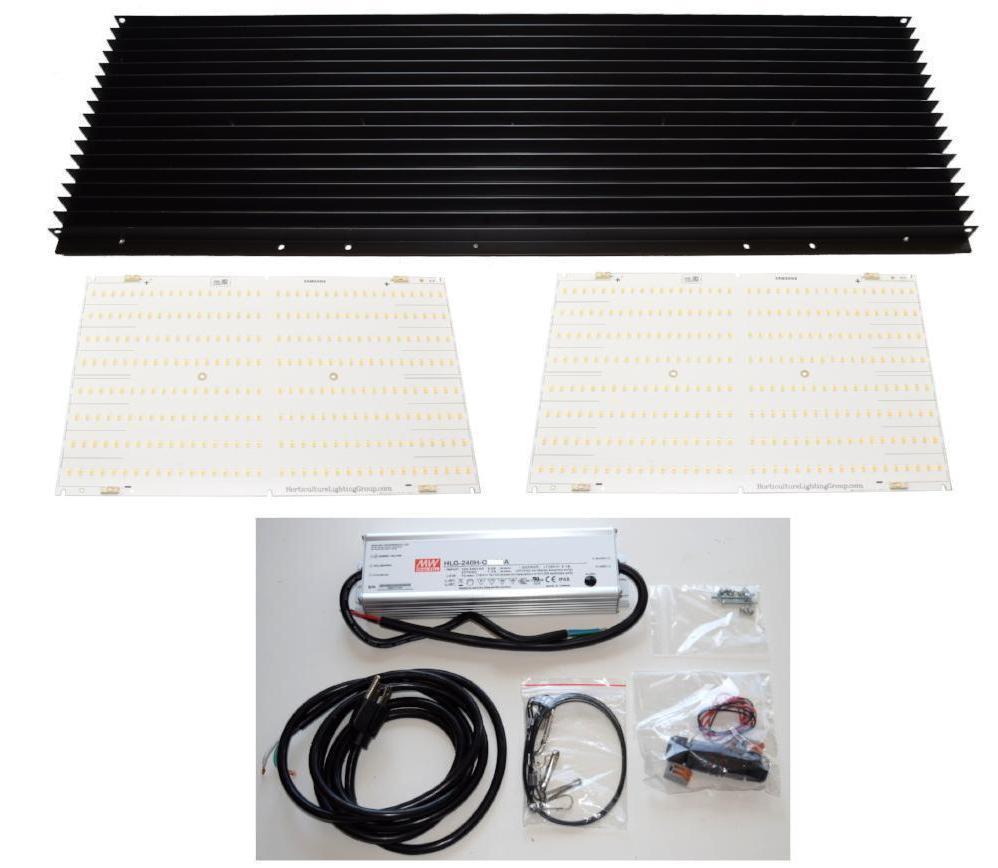

INCLUDES

  • 2x QB288 Boards made by Samsung with 301H LED
  • 1x Slate 2 Double Predrilled 600mm Heatsink

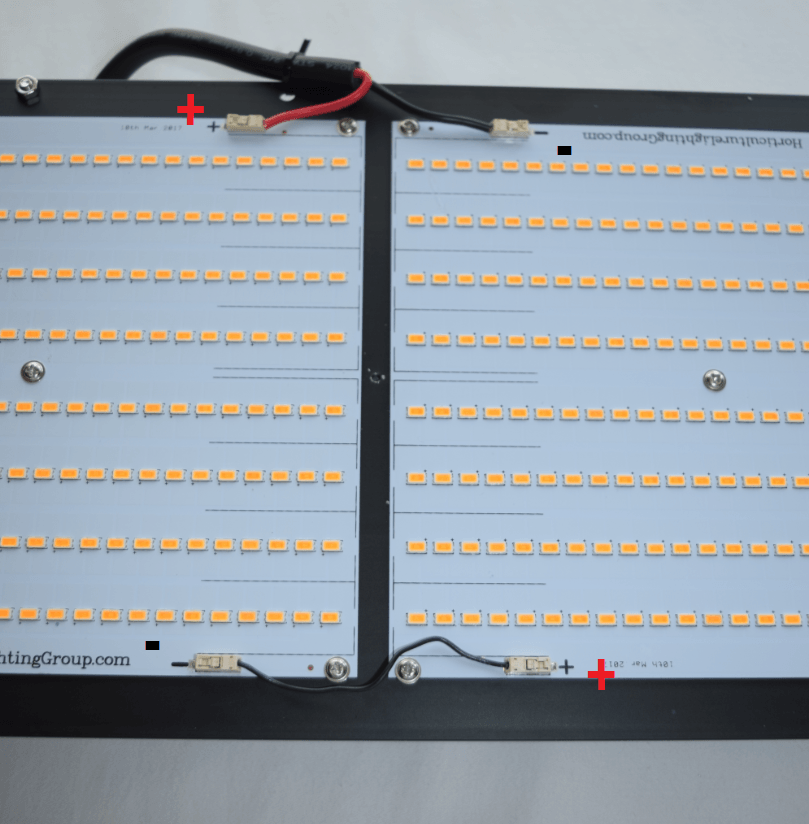

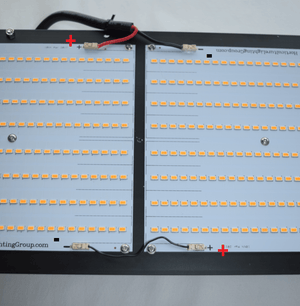

  • Meanwell ELG-240H LED Driver. 93.5% Driver Efficiency. Boards should be wired in series with the driver for maximum output
  • 6FT Nema 5-15P 16/3 SJTW NA Power Cord or equivalent for standard 120VAC with cable connector (Ships with AU power cord, Not USA)
  • 2ft solid core Wire, 2x Wago Connectors for DC wiring
  • Hanger Clips



Lamp Efficacy with QB 288 V2  2.47 µmol/J , 170Lm/W
Board Level Efficacy with QB 288 V2 2.63 µmol/J , 181Lm/W

Below Video with Review from LED Gardener.



No Thermal Interface Material is required between the LED board and the heatsink.

Remove black plug on driver and use Philips head screw driver for dimming

LED Driver color wires



Molex Lite Trap





Note, we are not responsible for any assembly and ask that you use a licensed electrician to assemble and install any DIY Light.

Light comes with Australian Plug, NOT USA plug as displayed in Picture.

Ships from our Warehouse in Sydney, Australia.

Note, the Australian HLG 260 Ships with a different Meanwell Driver than what pictured - It will be Same output and quality.


 THIS LIGHT IS ALSO AVAILABLE IN RED SPEC WHICH IS THE BEST FLOWER LIGHT, WHILE ALSO CAPABLE OF BEING A GREAT VEG LIGHT
