QB288 V2 Blue Spec or Red Spec QUANTUM BOARDS LM301H Samsung Diodes
QB 288 V2 are made by Samsung for Horticulture Lighting Group. Each board has 288 highest flux and lowest voltage bin for an unbeatable performance.
Light Boards are made and imported from USA - Quality and backed by Quick Bloom Lights and HLG.

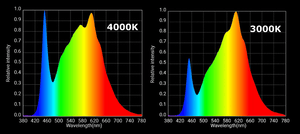

High efficiency boards designed for DIY projects. Available in 3000K and 4000K. No Thermal Interface Material or paste is required. Currently we only carry the 3000K, 4000K available upon request.
Price is for 1 Board - incl. Shipping in Mainland Australia and Tasmania.
SPECIFICATIONS
- 288pcs Samsung 301H Bin Diodes
- Connectors rated 300V 9A
- Dimensions 6.833" x 11.25
- Max current per board 3000mA
Flux Characteristics with QB 288 V2 3000K, S6 Bin at 55C
| VDC |
Current (mA) |
Watts at Board |
Lm/W at Board (55C) |
μmoles/joule at Board (55C) |
| 45.72 |
500 |
22.86 |
206 |
3.00 |
| 46.98 |
1050 |
49.33 |
196.10 |
2.85 |
| 47.70 |
1400 |
66.78 |
190.50 |
2.77 |
| 48.96 |
2100 |
102.82 |
180.77 |
2.63 |
| 49.50 |
2400 |
118.80 |
177.50 |
2.58 |
| 49.86 |
2800 |
139.60 |
173.80 |
2.53 |
- Allow tolerance of an additional 1V while matching drivers.
- Please use this as a reference only.
May require an Aluminum plate or heatsink if running 75+ watts. Heatsink requirements depends on application and power.
This is the PCB board only, Power supply and other parts NOT incl. Do not buy unless you know how to install and use. This item not refundable due to the nature of the boards.
